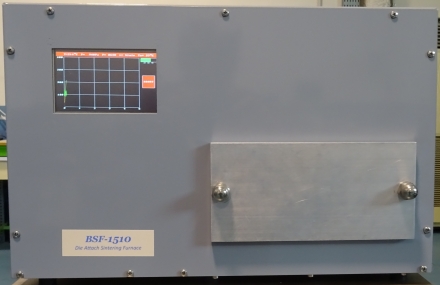

BSF-1510 NanoSilver Paste Sintering Furnace.
Home » Sintering Furnace
Sintering Furnace
Description
- BSF-1510 NanoSilver Paste Sintering Furnace is specifically designed for low temperature, low pressure sintering.
- Fully programmable sintering parameters.
- Completelly self-standing, requiring only a mains connection.
Features
- Programmable sintering temperature up to 350ºC
- Programmable sintering force up to 2000N
- Enclosed vaccum pump for enhanced solvent removal
- Easy load and unload through a removable substrate tray
- 10 programmable sintering processes ready available at turn on
- One touch processing
Applications
BSF-1510 NanoSilver Paste Sintering Furnace is intended for attaching Ag or Au back finished die onto bare Cu or Ag or Au finished DCB or flat leadframe substrates. Loading trays can be designed for other non flat substrates

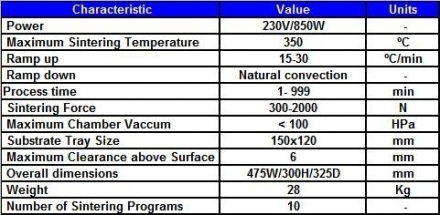

Technical Data
